Websocket automotive gauge project.

Introduction

• What is this?
  • This is an application that acquires the car’s sensor information (speed, RPM, water temperature, boost, etc.) and displays them as a graphical gauge.
• Features.
  • This project(program) contains server (collects and distributes sensor information to client) and client (displaying sensor information distributed from the server as a graphical gauge).
  • Websocket is used for communication between the server and the client, usually using wired LAN or Wifi.
• Features of the client side
  • The client is a web application, which can run on any OS (PC or smartphone) as long as the browser runs, and does not require installation.
  • Multiple clients are allowed (multiple smartphones can displlay different gauges).
  • Graphic display of the client uses WebGL, which is web-based but relatively fast. (Thanks mostly to pixi.js)
  • It is possible to change the meter design by yourself by tweaking the client’s javascript (typescript) source code.
• Features of the server side
  • The server side is also multi-platform compatible. As long as .net (6.0) + asp.net work and serial port access is available, OS and CPU are (should be) not cared.
  • Confirmed on Windows+x64, Linux+x64, Linux+ARM; can also run on Raspberry Pi.

Try it.

See Quick start

Design gauges

Access gauge viewer reporitory of WebSocketGaugeClientNeo.

Demonstration movies.

Demonstration on car

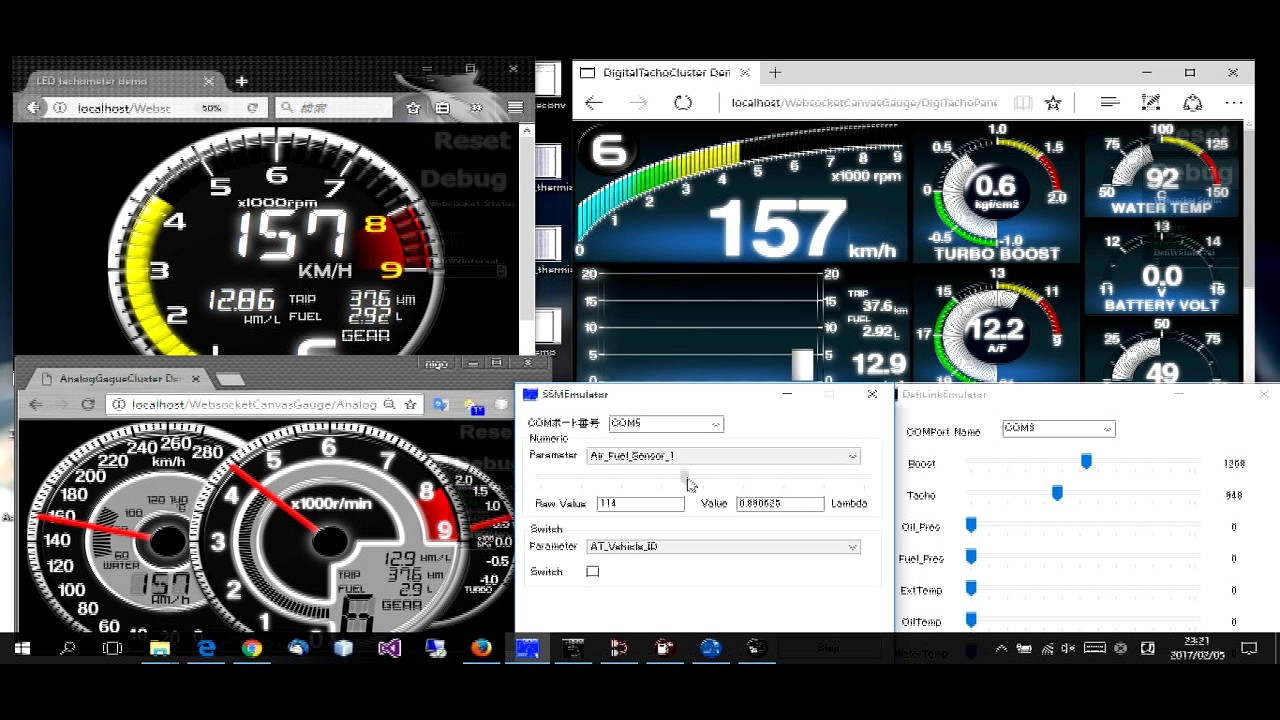

Demonstration on development PC

Arduino sensor unit demo.

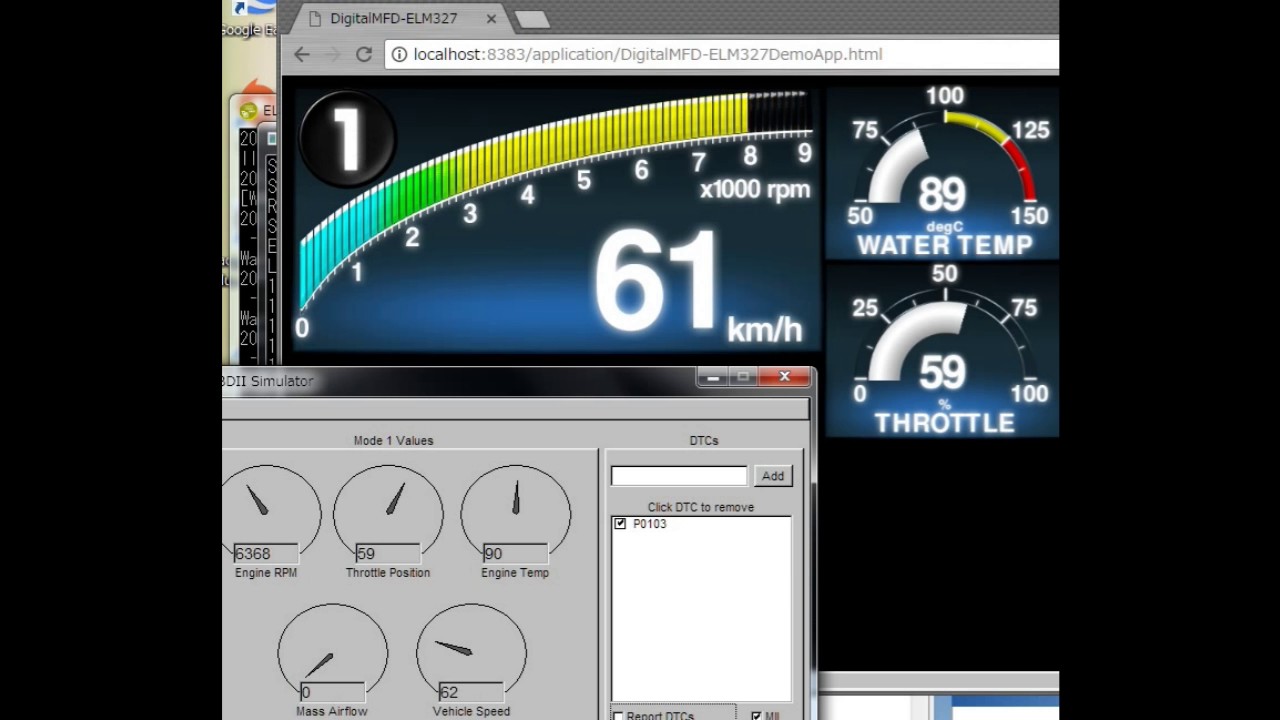

ELM327 demo (emulated on obdsim)

Gallery

• Analog triple meter
• Multi function display (MFD)
• Meter and car navigation app, by picture-in-picture
  • Using Android multiple window separation feature
• Meter and car navigation app,by floating widget
  • Using Overlays app

Related reporitories

• WebSocketGaugeServer
  • Read the sensor information from ECU or control unit (via serial port) and broadcast the information via websocket.
• WebSocketGaugeClientNeo
  • HTML5 (+WebGL or canvas) based gauge viewer (client) application.
• Arduino-CarSignalSensorBox
  • Arduino skethes to read speed/rpm pulse and boost/temperature voltage.
• DefiCOM_SSMCOM_Emulator
  • Emulator for defi-link and Subaru select monitor (SSM). (This is useful for debugging custom gauge client application).
